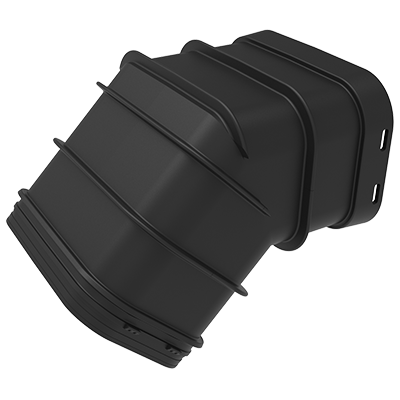

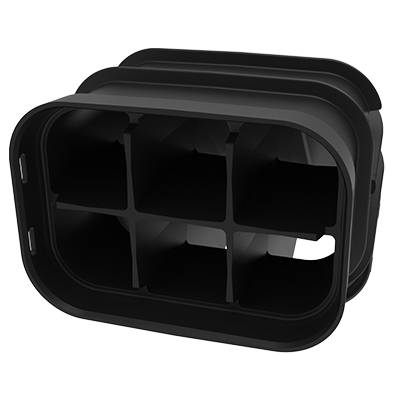

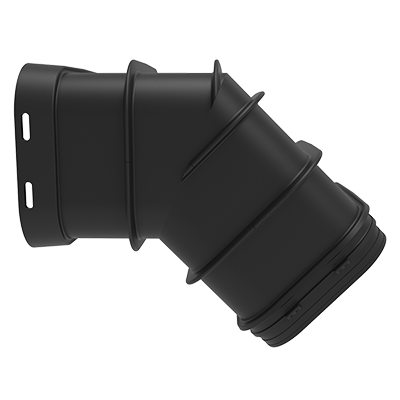

MULTIduct™ 6 Way 45 Deg Bend Horizontal

Product Code: 50206690

MULTIduct™ is a durable, lightweight and structural multiple duct cable protection system offering a modern alternative to traditional cable ducting systems. 45 Deg Bend Horizontal allows the duct to change direction without needing a pit.

  • Materials
    High Density Polyethylene (HDPE)
  • Size
    750mm (L) x 300mm (W) x 249mm (D)
  • Load Rating

Features & benefits

Lightweight HDPE

Can be transported by a ute and assembled by a single person without the need of heavy lifting machinery.

High Crush Strength

Requiring shallower burial depths and with greater crush resistance than conventional methods

Quick assembly

Each unit can be installed in under one minute

Full specifications


Manufactured from high density polyethylene (HDPE), MULTIduct™ offers a lightweight, high strength to weight unit. With parts weighing below 20kg MULTIduct™ offers significant health and safety advantages permitting a single person lift and install.

Load Rating

Infrastructure Products Australia' MULTIduct™ manufactured to a Class B load rating (ultimate limit state design load of 10kN) under the Australian Standard AS/NZ 3996

How it works

Interlocking male and female clips make installation process seem like a puzzle. Installation is as easy as lining the clips together and clicking the duct into place. Interior of the ducts is seamless and eliminates disengagement during cable pulling.
