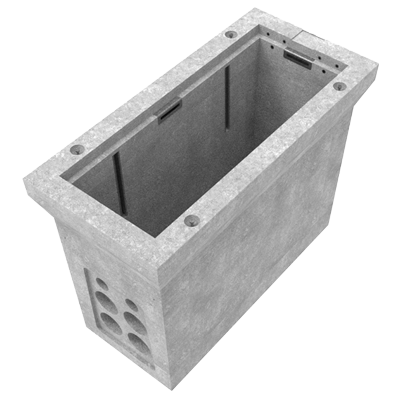

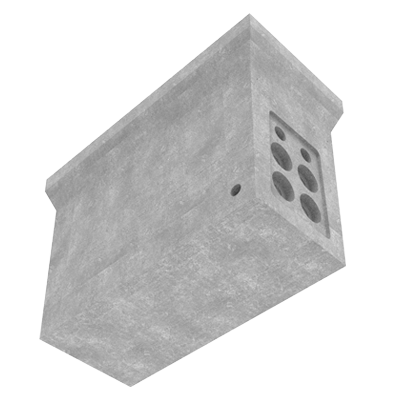

Pit Concrete Belltop 8 Class D

Product Code: 50201060

Infrastructure Products Australia's precast concrete cable pit range, delivering innovative solutions proven for their strength, durability and consideration of unique sector requirements.

  • Materials
    Precast Concrete
  • Size
    1505mm (L) x 705mm (W) x 1125mm (D)
  • Load Rating
    D

Features & benefits

Superior Cable Pit Range

Our pits have been designed and engineered for the Australian infrastructure networks and have been approved and specified by major authorities.

Robust Cover and Security Options

Multiple covers, riser and encasement options are available to add extra depth, security and access preferences to your pit.

Extensive Life Span

Design engineered to meet industry and installation requirements, your pit is guaranteed to withstand even the harshest conditions.

Full specifications

Material

High strength concrete has a compressive strength of 40MPa or greater. Infrastructure Products Australia manufactures their precast concrete cable pits using a fibre reinforced concrete mix to ensure a minimum of 40MPa. This attests to our pits remaining durable and robust throughout their lifetime.

Load Rating

Our standard precast concrete cable pits are manufactured a Class D load rating (ultimate limit state design of 240kN) under the Australian Standard AS/NZ 3996.
