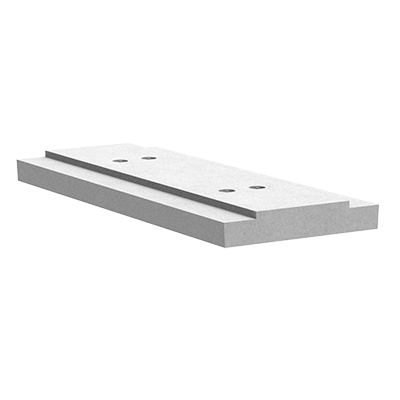

Base Slab TMR 600-2A 2400mm Nominal Length

Product Code: 50207211

Base slabs are TMR approved products and they were designed to create a flat base for box culverts. They are made out of fibre reinforced concrete that has a lifespan of 100 years.

  • Materials
    Precast Concrete
  • Size
    2400mm (L) x 600mm (W) x 280mm (D)
  • Load Rating

Features & benefits

High flow drainage

Base slabs help channel the water away quickly to prevent flooding.

ā€œUā€ shape

When the box culverts are inverted, base slab becomes the roof of the culvert.

Full specifications


40MPa fibre reinforced concrete is a high strength concrete used to make box culverts. The rating of 40MPa or greater means that box culverts will remain durable and robust throughout their lifetime.

Australian Standards

AS 3996: 2019

How it works

Base slabs are dropped into place followed by box culverts. If box culverts run parallel, then a link slab is placed in between to enclose the middle conduit. Minimal amount of backfill is required to complete the project.
