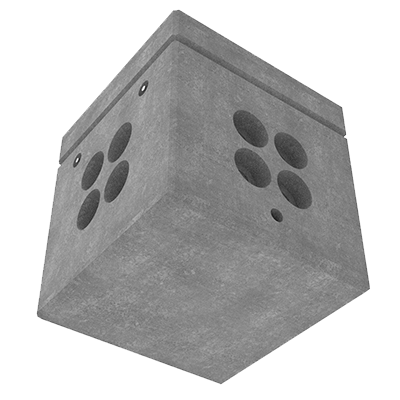

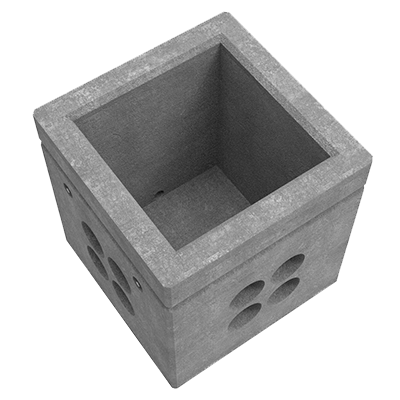

Pit Concrete 600x600x600x95mm Class D

Product Code: 50201630

Infrastructure Products Australia works closely with key industry groups and authorities to develop its extensive precast concrete cable pit range, delivering innovative solutions proven for their strength, durability and consideration of unique sector requirements.

  • Materials
    Precast Concrete
  • Size
    800mm (L) x 800mm (W) x 700mm (D)
  • Load Rating
    D

Features & benefits

Extensive Life Span

Design engineered to meet industry and installation requirements, your pit is guaranteed to withstand even the harshest conditions.

Robust Cover and Security Options

Multiple access cover, riser and encasement options are available to add extra depth, security and access preferences to your pit.

Bespoke Capabilities

Customisation of our precast concrete cable pits is available to suit the unique requirements of your project, so that you can be confident you’re getting exactly what you need.

Full specifications

Material

High strength concrete has a compressive strength of 40MPa or greater. Infrastructure Products Australia manufactures their precast concrete cable pits using a fibre reinforced concrete mix to ensure a minimum of 40MPa. This attests to our pits remaining durable and robust throughout their lifetime.

Load Rating

Infrastructure Products Australia standard precast concrete cable pits are manufactured up to a Class D load rating (ultimate limit state design of 240kN) under the Australian Standard AS/NZ 3996.
