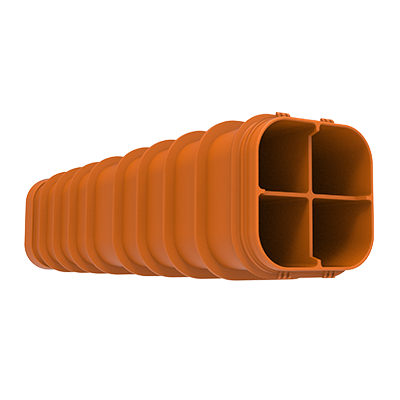

MULTIduct™ Unit 4 Way

Product Code: 50201235

This duct was designed with four slots to carry four different electrical wires simultaneously. It can be easily assembled and run in between Stakkabox pits.

  • Materials
    High Density Polyethylene (HDPE)
  • Size
    1100mm (L) x 263mm (W) x 263mm (D)
  • Load Rating
    B

Features & benefits

Lightweight

Weight under 14kgs

Quick Assembly with Secure One Click Connection System

Takes a few minutes to install, no tools are required

Applications

Four slots for four applications

Full specifications

Material

Manufactured from high density polyethylene (HDPE), MULTIduct™ offers a lightweight, high strength to weight unit. With parts weighing below 20kg MULTIduct™ offers significant health and safety advantages permitting a single person lift and install.

Load Rating

Infrastructure Products Australia' MULTIduct™ manufactured to a Class B load rating (ultimate limit state design load of 10kN) under the Australian Standard AS/NZ 3996

How it works

Interlocking male and female clips makes installation process seem like a puzzle. Installation is as easy as lining the clips together and clicking the duct into place. Interior of the ducts is seamless and eliminates disengagement during cable pulling.

Resources

Documents & Brochures
