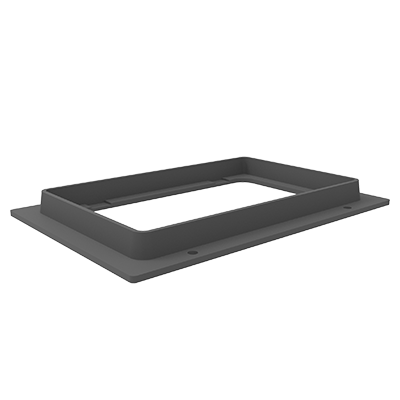

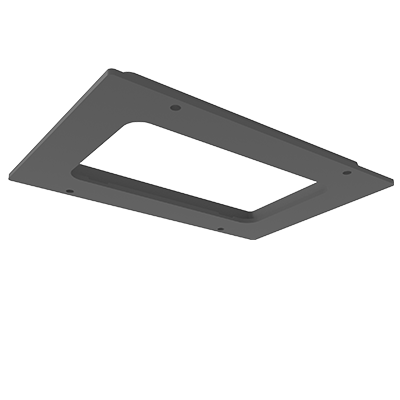

Frame to Suit P5 Pit

Product Code: 50201872

Infrastructure Products Australia' robust cast iron cover range is used across a variety of industry sectors including telecommunications, energy, rail, defence, tradewaste and stormwater. Our cast iron cover range delivers solutions proven for their strength and durability.

  • Materials
    Ductile Cast Iron
  • Size
    760mm (L) x 530mm (W) x 106mm (D)
  • Load Rating
    D

Features & benefits

Nationally approved cover range for key industry authorities

Our cast iron cover range has been approved for use by key industry authorities across various sectors.

Custom branding available

Customisation of our cast iron covers is available to showcase your company’s branding and/or the cover’s unique application.

Locking and security capabilities

Our cast iron cover range has locking and security capabilities to ensure the utmost protection for your valuable assets.

Full specifications

Material

Ductile iron covers are manufactured from spheroidal graphite cast iron to achieve specified tensile strength and elongation requirements. Infrastructure Products Australia' ductile iron covers are in accordance with requirement specified in AS1831 and AS3996. Ductile iron covers can be utilised in variety of applications to meet strength and durability requirements.

Australian Standards

Cast iron cover range is designed and built a Class D load rating, meeting the Australian Standard AS/NZ 3996

Load Rating

Cast iron covers are manufactured a Class D load rating (ultimate limit state design of 900kN) under the Australian Standard AS/NZ 3996, thereby making cast iron covers suitable for docks, wharves and airport runways.
