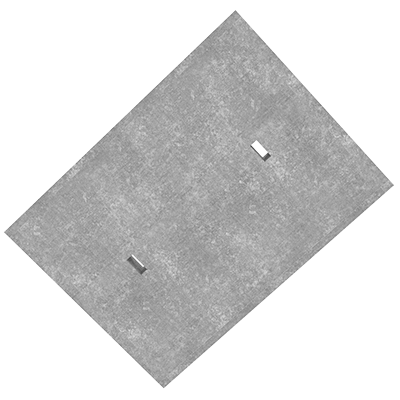

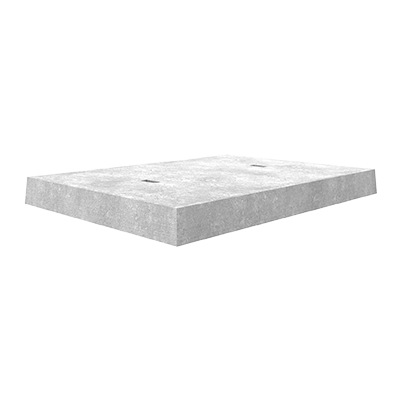

Cover Concrete Junction 1100x800x100

Product Code: 50202635

Solid concrete cover without an access insert, typically used with a junction pit with 900x600 opening in non-trafficable areas.

  • Materials
    Precast Concrete
  • Size
    1100mm (L) x 800mm (W) x 100mm (D)

Features & benefits

Variability in size

Our range of precast concrete covers come in a variety of sizes to ensure you have the right cover for your project.

Steel reinforced for robustness

Our precast concrete covers are manufactured using minimum 40MPa steel reinforced concrete to the ensure strength and integrity of the cover.

Nationally approved for key industry authorities

Many networks and asset owners have approved our precast concrete cover range for specific project requirements.

Full specifications


High strength concrete has a compressive strength of 40MPa or greater. Infrastructure Products Australia manufactures their precast concrete covers using steel reinforced concrete to ensure a minimum of 40MPa. This ensures that the covers remain durable and robust throughout their lifetime.

Australian Standards

Our precast concrete cover range is designed and built for a Class A load rating, meeting the Australian Standard AS/NZ 3996.

Load Rating

Our precast concrete covers are manufactured to a Class A load rating (ultimate limit state design of 10kN) under the Australian Standard AS/NZ 3996. This makes our precast concrete covers suitable for areas accessible by pedestrians.
